Locksley Architecture + Design Studio

The Robin Residence | 1,265 SF

The Robin Residence | 1,265 SF

Regular price $1,400.00 USD
Regular price Sale price $1,400.00 USD
Sale Sold out

Square Footage: 1,265 SF  | 2 Bed, 2 Bath

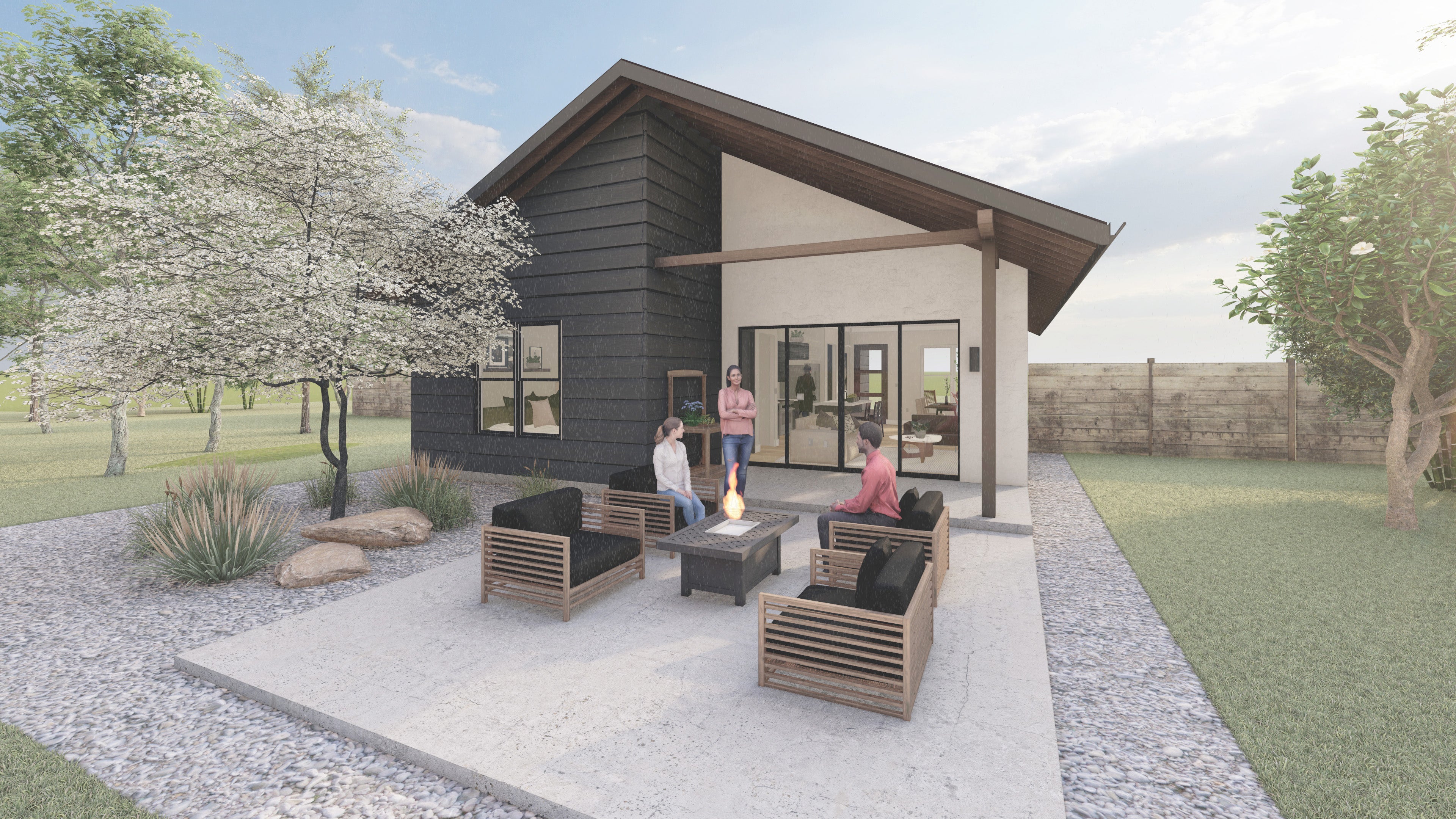

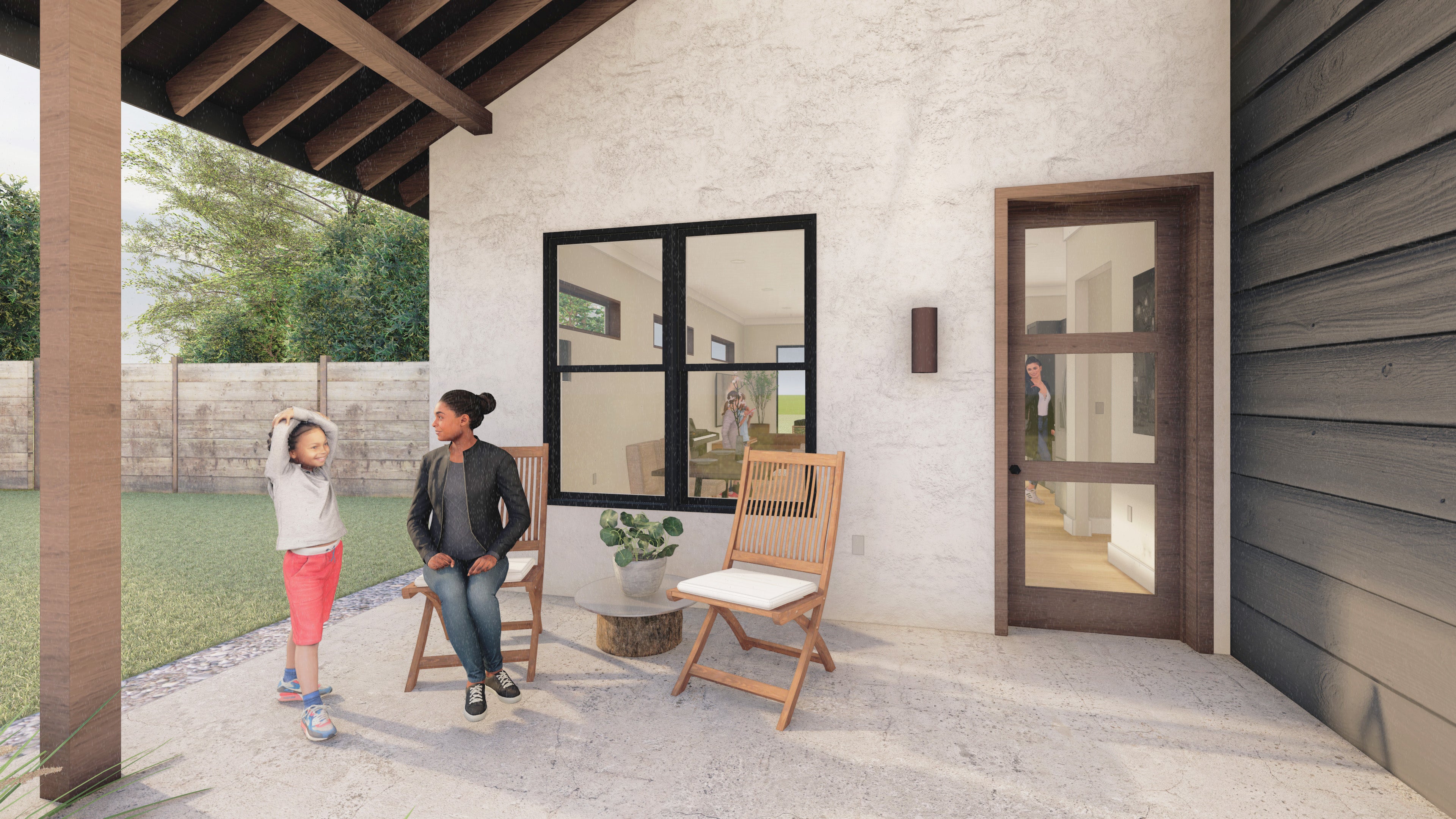

Are you looking for an efficiently designed, cozy home that has a contemporary appeal? The Robin Residence may be the perfect house plan for you. With two bedrooms, two bathrooms, and ample outdoor living space, this home packs in quality spaces in an efficient footprint.

SQUARE FOOTAGE: 1,265 SF - CONDITIONED

BEDROOMS: 2

BATHROOMS: 2

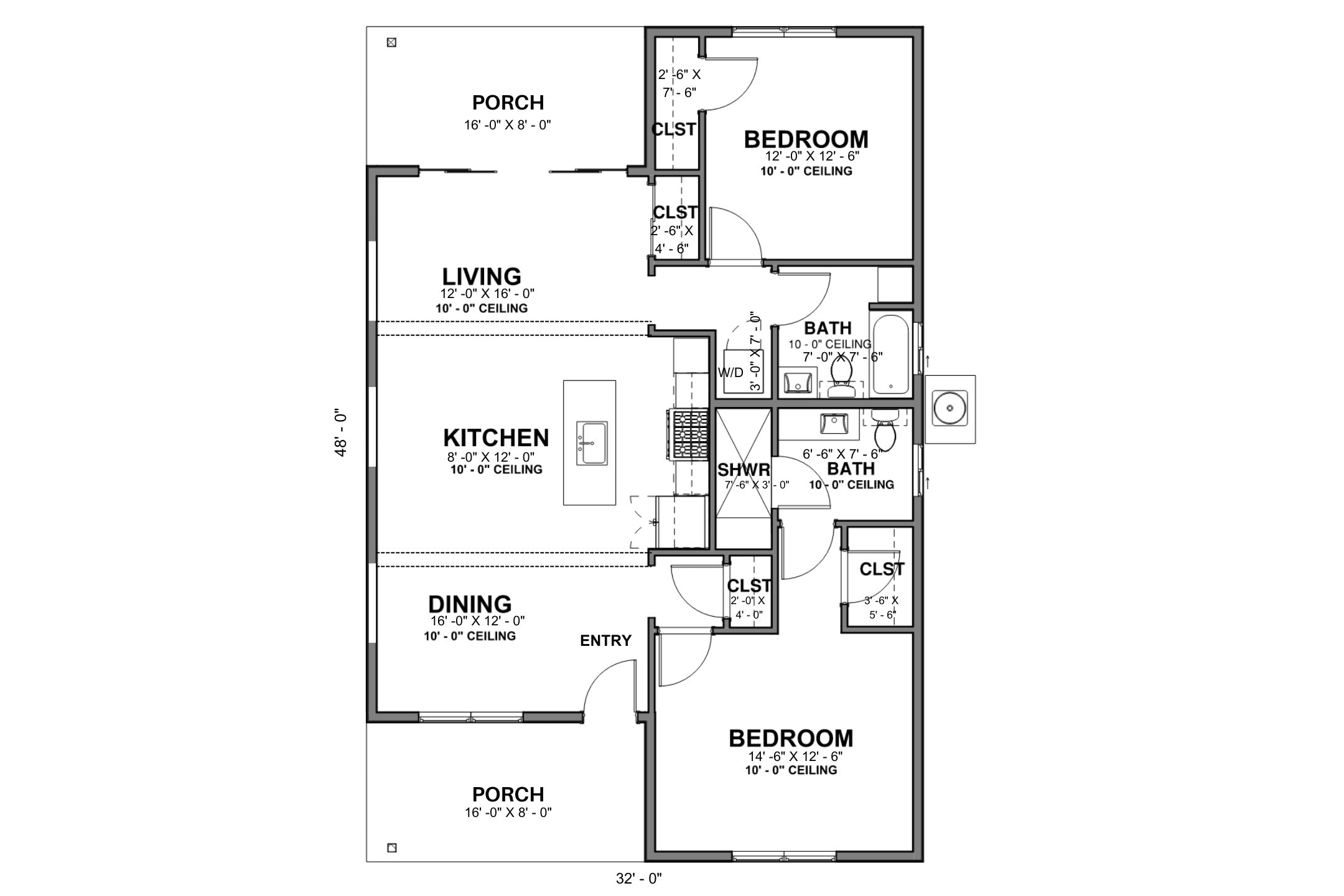

WIDTH X DEPTH: 32'-0" x 48'-0"

Plans Include:

PDF 24 x 36 Set

Dimensioned Floor Plan, Foundation Layout + Plumbing Plan, Roof Plan, Exterior Elevations, Window+ Door Schedule, Sections, Interior Elevations, Electric Lighting + Power Plan.

Construction Document Set will be sent to your email within 2 business days of purchase.

Modifications to this plan can be requested by emailing us at locksleystudio@gmail.com.



View full details

What's included.

Construction Document PDF Set - The construction document set includes the drawings needed for your contractor to build the house and for permitting.

  • Dimensioned Floor Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Sections
  • Schematic Electric Lighting + Power Plan
  • Schematic Slab Foundation Layout + Plumbing Plan
  • Window + Door Schedule

What is not included:

  • Engineered Foundation and Framing Plans
  • Specific Material and Product Selections

Most of the time, these items will be procured by your builder since they are dependent on location and budget.

What you will receive:

PDF Electronic Construction Document Set. 24 x 36

Rights to build for one home. If you are needing rights for multiple builds, please contact us.
